Maneuverable Trolley Waterers Manual - SCH THBW / HBWP

Introduction to SCH THBW and HBWP Trolley-Mounted Waterers

SCH THBW and HBWP trolley-mounted waterers provide an effective solution for precise and efficient watering needs. These units are particularly useful for gardens, greenhouses, or any setting where maneuverability and ease of use are paramount.

Features and Specifications of SCH Trolley Waterers

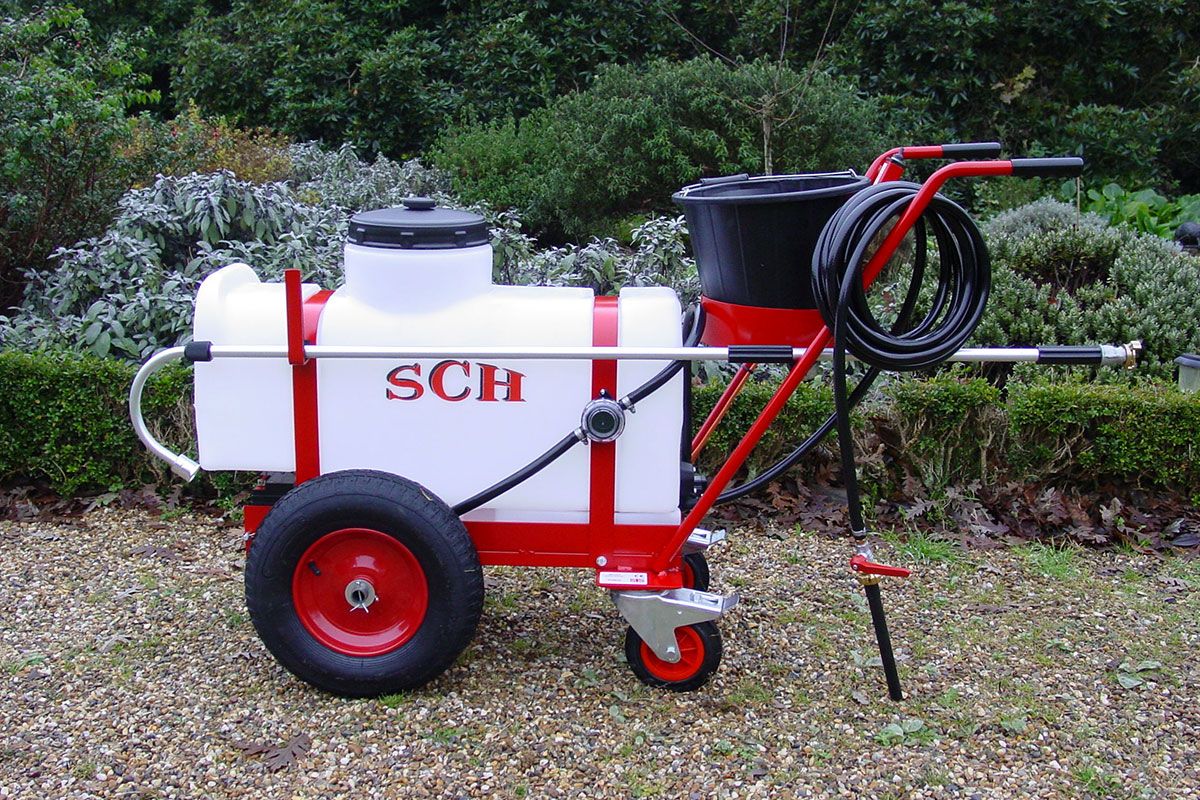

SCH THBW Waterer

• Tank Capacity: 70 Liters
• Dimensions: Width 600mm, Height 800mm, Length 1350mm
• Weight: Empty 30kg, Full 99kg
• Hose: 6 meters of heavy-duty hose with on/off lance
• Pump: 12-volt diaphragm pump delivering 18 liters per minute
• Mobility: Mounted on two large pneumatic front wheels and two rear caster wheels with a parking brake

SCH HBWP Waterer

• Tank Capacity: 50 Liters
• Dimensions: Width 540mm, Height 800mm, Length 1450mm
• Weight: Empty 30kg, Full 75kg
• Hose: 3.66 meters of heavy-duty hose with on/off lever tap
• Pump: Similar to THBW, operated by a rechargeable battery

Operating Instructions for SCH Trolley Waterers

Battery Installation

Fit the battery into the compartment ensuring correct polarity (brown wires to the positive (+), blue wires to the negative (-) terminals).

Preparation

Ensure the unit is securely chocked.
Fill the tank with water (advisable to fill only up to 20 liters for each 25-liter capacity area as stated).

Operation

Turn on the pump by switching on and opening the lance tap; this activates the pressure system.
The flow of water is controlled by the lance tap. Turning it on will start the pump; turning it off will stop the pump.
Monitor and manage the battery's charge levels, especially after use.

Safety Instructions for SCH Trolley Waterers

General Precautions

• Keep the unit in a safe, stable place, preferably on level ground.
• Avoid navigating steep or uneven terrains, and never attempt to move the unit when fully loaded by pulling on the delivery hose.
• Always ensure the battery is securely connected and the unit is stable during operation.

Specific Cautions

• Do not operate the pump without water or at water temperatures above 60 degrees Celsius.
• Do not make adjustments to the pre-set pump speed.
• Ensure no water remains in the pump if there's a risk of freezing, to protect the system from frost damage.

Battery Care and Maintenance Tips

Charge the battery for 12 - 15 hours after use. If the waterer is not in regular use, disconnect the battery to prevent drainage.
Only use the provided charger to avoid battery damage.

• Regularly clean the filter on the suction hose to maintain optimal pump performance.
• Check and maintain wheel integrity, ensuring the parking brake functions correctly to secure the unit when stationary.

Conclusion

The SCH THBW and HBWP maneuverable trolley waterers are engineered to provide convenience and efficiency in watering tasks. With proper operation, regular maintenance, and adherence to safety guidelines, these units will reliably assist in managing your watering needs, enhancing productivity in your gardening and maintenance endeavors.

Important:

Please refer to the manufacturer's official manual before using this product or carrying out repairs.
