Push Salt Spreader Manual - SCH SSS2

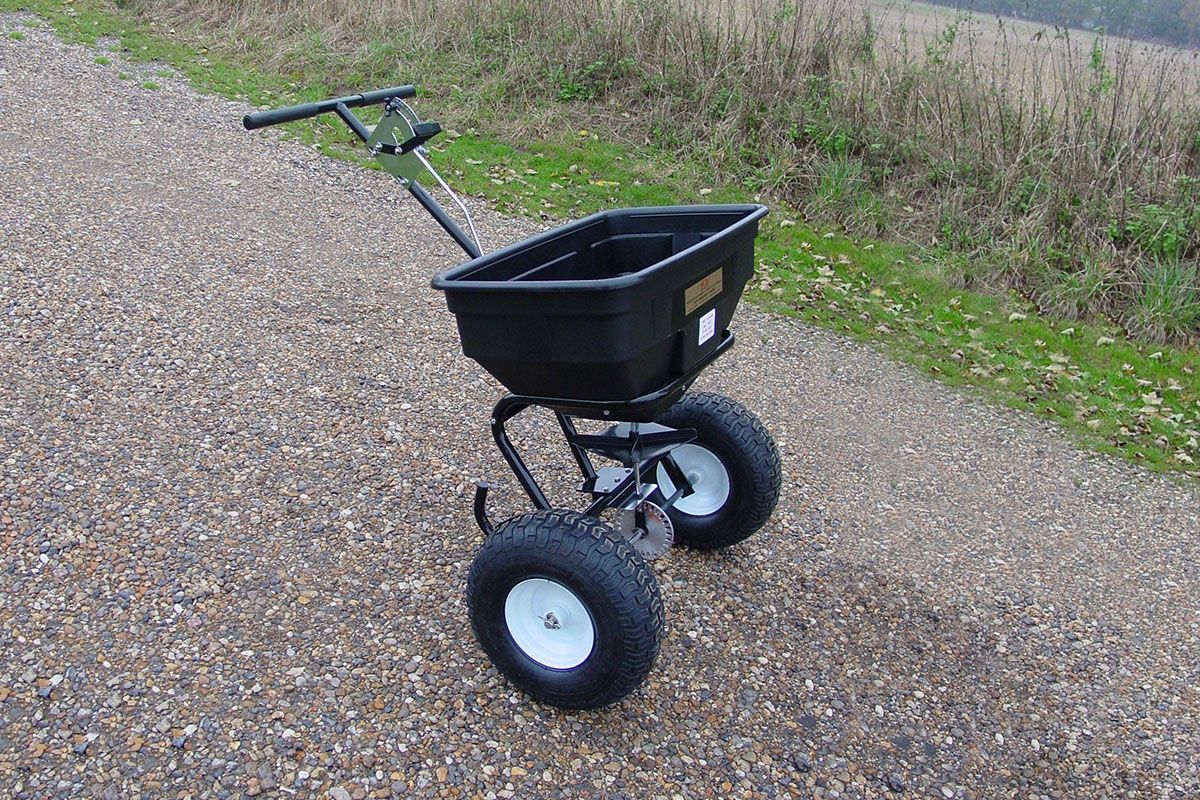

Introduction to SCH SSS2 Small Salt Spreader

The SCH SSS2 Small Salt Spreader is an indispensable asset for distribution of salt, fertilizer, and seeds over various grounds. Designed with a 60kg hopper and equipped with pneumatic wheels, this spreader ensures easy maneuverability and efficiency, especially during adverse weather conditions to maintain safety in work areas.

Key Specifications of SCH SSS2 Salt Spreader

• Overall Width: 820mm (32”)
• Hopper Capacity: 60kg
• Maximum Spread Width: 3 to 3.5 meters
• Optimal Push Speed: 3 mph for consistent spread

Safety Instructions for Using the Salt Spreader

• Avoid leaving the salt spreader in areas where it can cause tripping or injuries.
• The spreader is not designed to carry people.
• Maintain awareness of your surroundings to prevent accidents.
• Operate at a safe speed to avoid bouncing and potential loss of control.
• Adhere to the maximum load capacity to avoid overloading and damage.
• Navigate carefully around large holes and ditches, and exercise caution on steep gradients to prevent tipping.
• Keep hands and feet away from moving parts during operation.
• Utilization of safety gear and eye protection is recommended for optimal safety.
• Ensure the spreader is stationary with the hopper empty, and the control lever is OFF when not spreading.

Maintenance of the SCH SSS2 Salt Spreader

• After each use, ensure the hopper is emptied.
• Regularly clean and dry the spreader thoroughly to prevent corrosion.
• Lubricate all moving parts carefully without over packing, especially the gear, slide plate, and spinner shaft.
• Do not store the spreader loaded with materials to prolong durability.

Settings and Operation Guide for SCH SSS2 Salt Spreader

Settings Adjustment

• Modify spreader settings by interacting with the Calibration indicator button and adjust to the required setting via the control cable assembly.
• Utilize the control lever to open and close the hopper appropriately.

Operation Procedure

• Confirm the control lever is OFF and the flow plate shut before filling the hopper.
• Operate the spreader by pushing forward; do not pull it backward.
• Engage the control lever to ON only while in motion to start spreading.
• To cease spreading, transition the control lever back to OFF before halting or undertaking a turn.
• To ensure accurate spread, maintain the hopper level by holding the handle at the correct height.
• Aim for a steady pace of about 3 mph.
• Overlap each pass by approximately 20% to avoid missed spots or striping, thereby ensuring an even distribution.
• Avoid over-application of material. In case of heavy deposit in a region, soak the area well to dilute concentration.

Conclusion

The SCH SSS2 is a versatile and dependable solution designed for easy and efficient spreading of salt, seeds, and fertilizer. Following the safety guidelines, maintenance practices, and operating procedures will ensure effective performance and longevity of your SCH SSS2 Small Salt Spreader, keeping areas safe and well-maintained in all weather conditions.

Important:

Please refer to the manufacturer's official manual before using this product or carrying out repairs.
