Introduction to Towed IBC Waterer Trailers

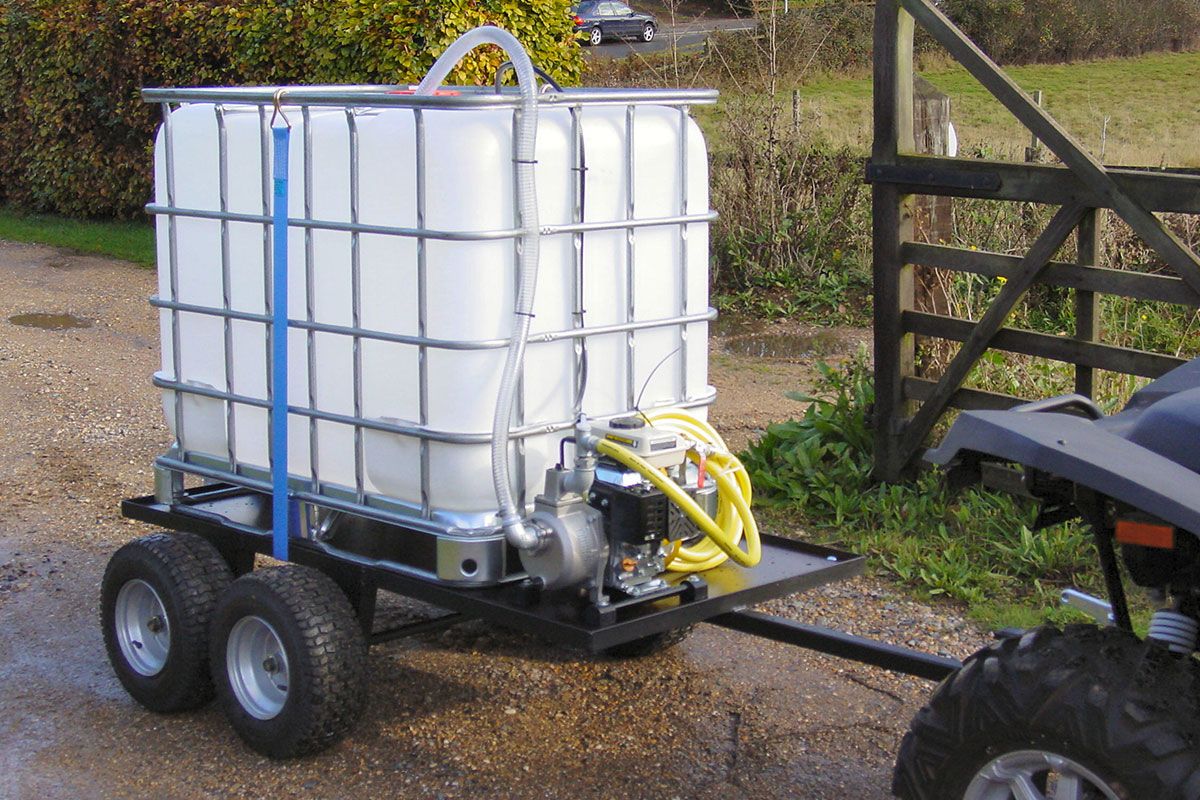

WC Series (for 24hp and above tractors and ATVs)
Specifications of WC Series Water Trailers
- Tank Capacity: 600 Liters
- Pump Options:
- Petrol WC(P): 1” centrifugal pump
- Electric WC(E): 12-volt electric pump (powered by towing vehicle or rechargeable battery)
- Flow Rate:
- Petrol: 150 liters per minute (adjustable)
- Electric: 12 liters per minute
- Hose: 6m heavy-duty hose
- Dimensions: Length 2220mm (including towbar), Width 1200mm, Height 1360mm
- Weight: Empty - 98kg, Full - 650kg
Specifications of EWC Series Water Trailers
EWC Series (for 30hp and above tractors and ATVs)
- Tank Capacity: 900 Liters
- Same pump options and flow rates as the WC series
- Dimensions: Length 2500mm (including towbar), Width 1430mm, Height 1600mm
- Weight: Empty - 130kg, Full - 1037kg
Safety Instructions for Water Trailers
- Use caution when towing water trailers due to 'live load' behavior, avoiding excessive speeds and sharp cornering.
- Make sure the tank is securely attached to the trailer and the waterer is fastened to the towing vehicle properly.
- Check the wheel's integrity and pressure.
- Never allow persons to travel on the waterer and avoid steep or uneven terrain.
- Keep the unit in a safe place, ensure battery connections are secure, and do not pull on the delivery hose.
Important Considerations for Operating Water Trailers
- Pump Care: Do not operate the pump without water and do not close the tap while running the pump.
- Load Management: Avoid exceeding towing capacity and ensure the electric pump's speed is not altered.
- Weather Protection: Protect the unit from frost and empty water if freezing is expected.
- Machine Purpose: The machine is strictly for watering purposes and not for human consumption.
Operating Instructions for Water Trailers
Electric Pump
- Choose the correct power supply and make sure to clean the filter on the tank.
- Open the discharge hose's red lever tap and switch on the pump.
- Once water flows, closing the red lever tap will automatically shut down the pump. Opening it will restart the pump.
Petrol Pump
Follow instructions provided in the pump's manual carefully.
Maintenance of Water Trailers
- Regularly inspect and secure all wheels.
- Grease wheel hubs and tighten nuts and bolts.
- Electric Pump: Check battery connections and clean the filter regularly.
- Petrol Pump: Maintenance as per the manual.
Conclusion
The WC and EWC series towed water trailers from SCH are durable, reliable, and suitable for a wide range of watering applications. Proper use and adherence to safety and maintenance guidelines will ensure the long-term effectiveness and safety of the trailers, providing an excellent resource for efficient water transportation and distribution.
