Arena Leveller Type-1 2.4m with Blade & Tines

Ideal for fluid-moving arena surfaces with a single component such as sand, rubber crumb and woodchip.

Suitable surfaces for the Arena Leveller - Type 1:
• Sand
• Rubber Crumb
• Woodchip

Surfaces such as fibre, synthetic and waxed are more suited to the Arena Leveller - Type 3.

The tines on your arena leveller are fully adjustable and can be purchased at a later date if you ever change your surface from sand to synthetic. The addition of tines transforms the standard type 1 into a machine which will mix fibres and sand together to give a stabilised and better water retention riding surface.

Also used to break up sand that has gone rock solid. The tines are independently adjustable to the rear blade.

BENEFITS:
• Type 1 Arena Leveller with tines can be used on any surfaces that have a 'fibre' mix i.e. Clopf, Turfloat, Combiride etc. Tines can also be helpful in the winter months if your surface starts to freeze.
• All of our machines are hand built using only the best materials and are built to last. After investing a lot of money and time installing your new arena it is imperative to look after it, not only to prolong the life of your arena but also to reduce any risk of injury to your horse.

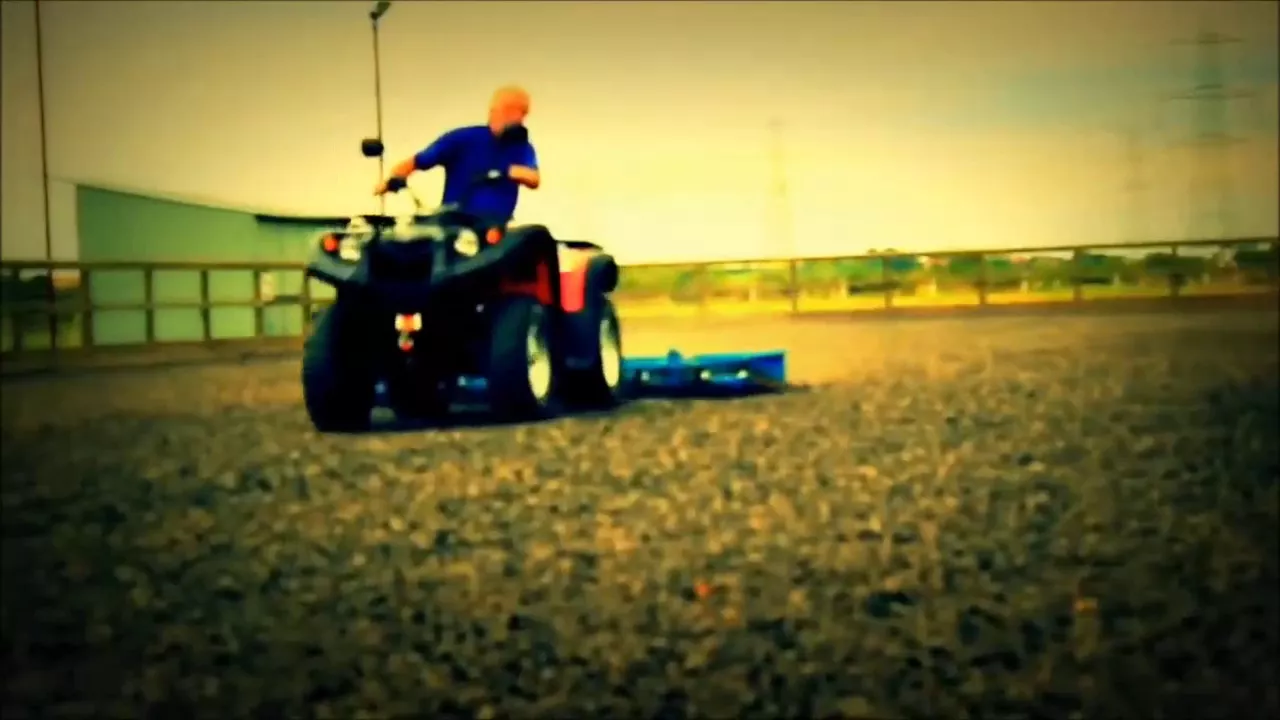

• All of our machines can be pulled using a quad, 4x4, tractor or suitable mower. Special order and special size machines are also available.
• Whatever the surface material - sand, rubber, combiride, turf float, woodchip, pasada, plastic etc and all synthetic surfaces etc, a superbly flat, level surface will be achieved - every time!
• The adjustable side gate will collect surplus material from the kickboards, pull it in towards the track and then level the surface - and does a fantastic job levelling into the corners!
• A small wheel at the side allows the leveller to maintain the correct distance every time. Other features include a unique winding handle to set the depth (very easy to use) and two small spades fitted behind the wheels to assist the levelling of a particularly lumpy surface, which will eventually be levelled completely flat.
• The Arena leveller is a superbly engineered piece of machinery which is very strong and yet light enough to move easily. The Arena leveller comes ready to use with a ball or pin hitch.

FEATURES:

Large Back Blade:
• Designed to quickly flatten materials around the arena - 2.4m wide as standard. Blade angle is adjustable to be shallow or aggressive depending on the surface.

Adjustable Side Gate:
• Easily pull in material around the kickboards and save hours of time raking in the sides.

Adjustable Tine Bar:
• Agricultural grade finger tines are adjustable in height. The tines loosen the arena materials before the blade levels the surface.

• High grade steel
• Precision engineered
• Infinite height adjustment
• Ball / Pin Hitch
• Female friendly
