Winton WHF145 1.45m Hydraulic Offset PTO Flail Mower

Reference: WHF145

Winton WHF145

Add to Basket
Description

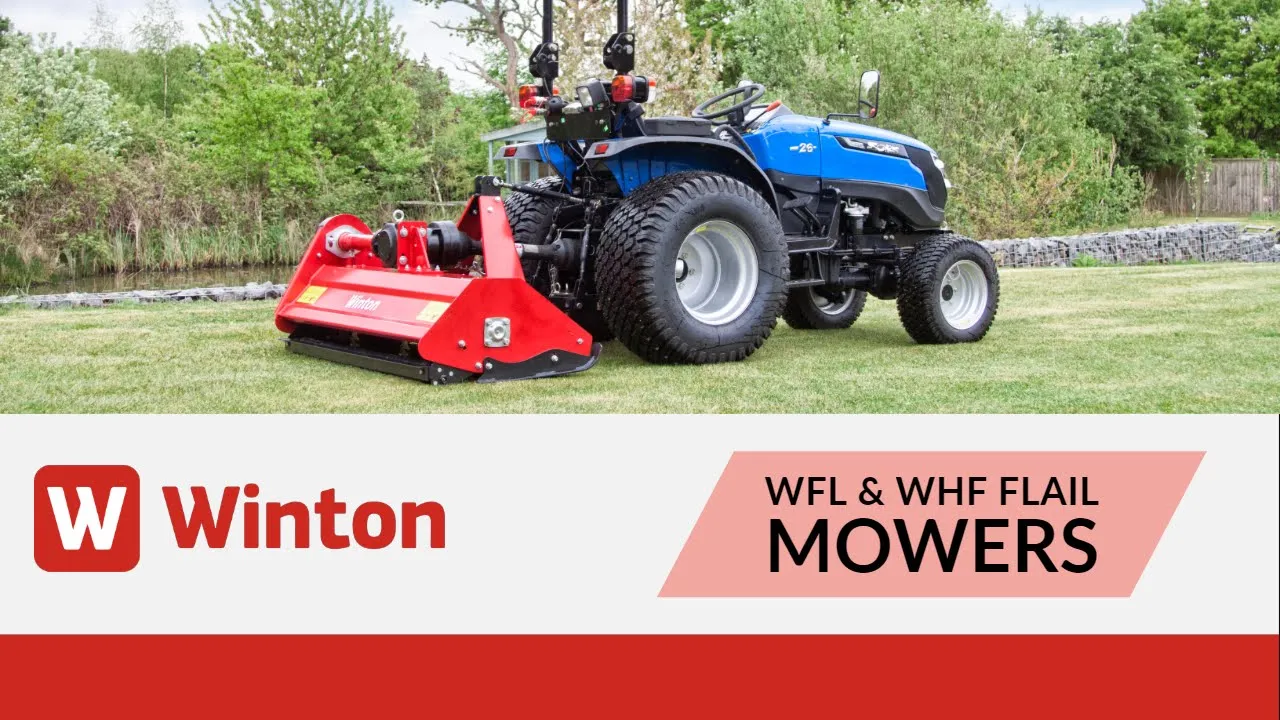

The Winton flail mower WHF145 is a heavy duty machine which is perfect for tackling overgrown areas. This mower is fitted with hydraulic side shift A-frame as standard for added manoeuvrability and also better access to hard to reach areas. This requires 1 double acting spool on the tractor for the 2 hoses which then operate the left-right movement. The offset function means the flail is ideal for cutting up to hedgerows, fencing then around any trees.

Fitted with heavier hammer flails and gearbox for tougher grass and weed control. This flail can then be used when grass and weeds are at a more manageable length to give a fine grass finish for lawns or sports fields when used regularly. Several hammer style blades are mounted to the cylindrical rotor in a spiral layout. This action is most efficient and creates finer cuttings. It is also better suited to uneven ground types than conventional rotary and topper mowers. The mower is also belt driven, there are 3 drive belts which give power to the blade rotor shaft.

This machine benefits from an adjustable rear roller, this can then be adjusted up or down along with the tractor top link arm to change finish and cutting height. The rear roller helps to avoid blade scalping on uneven areas. The mower also benefits from 2 height adjustable skids to adjust the cutting height. It also helps to avoid the mower scalping and leave an even cut when mowing.

The implement can be attached to the 3 point linkage of a range of small or compact tractors.

Features
• Robust heavy duty gearbox
• Spirally arranged blades for an efficient cut
• Hydraulic offset A-frame
• Height adjustable skids
• 3-8cm cutting height range
• Adjustable rear roller
• Heavy hammer flail blades
• Category 1 size linkage

Specifications

Brand

Winton Machinery

Weight

322kg

Tractor HP Required (range)

25-50HP

Cutting Heights

3-8cm

Working Width

140cm

Number of Blades

24

Linkage Type

Category 1

Lower Linkage Width

77-92cm

Oil Type

Gear 80W90

Min. Hydraulic Fittings

1x Double Acting Spool

Warranty

12 months manufacturer's warranty

About Winton Machinery

Agricultural Products for Smallholders & Farmers

Winton Machinery specialises in tractor mounted and PTO driven mowers, suitable for small compact through to medium sized tractors. Their range of groundcare machinery takes the typical mower and enhances the durability and robustness by upgrading several key components such as bearings, gearboxes and blades.
